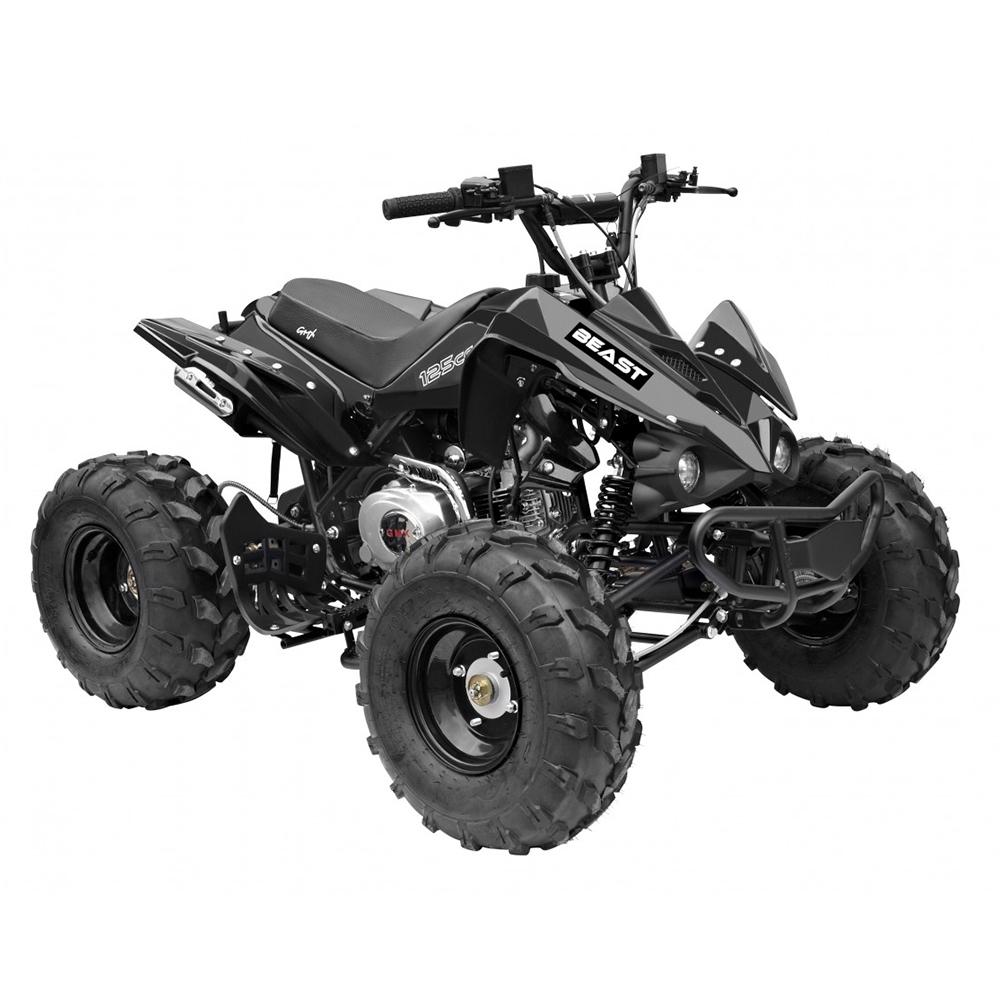

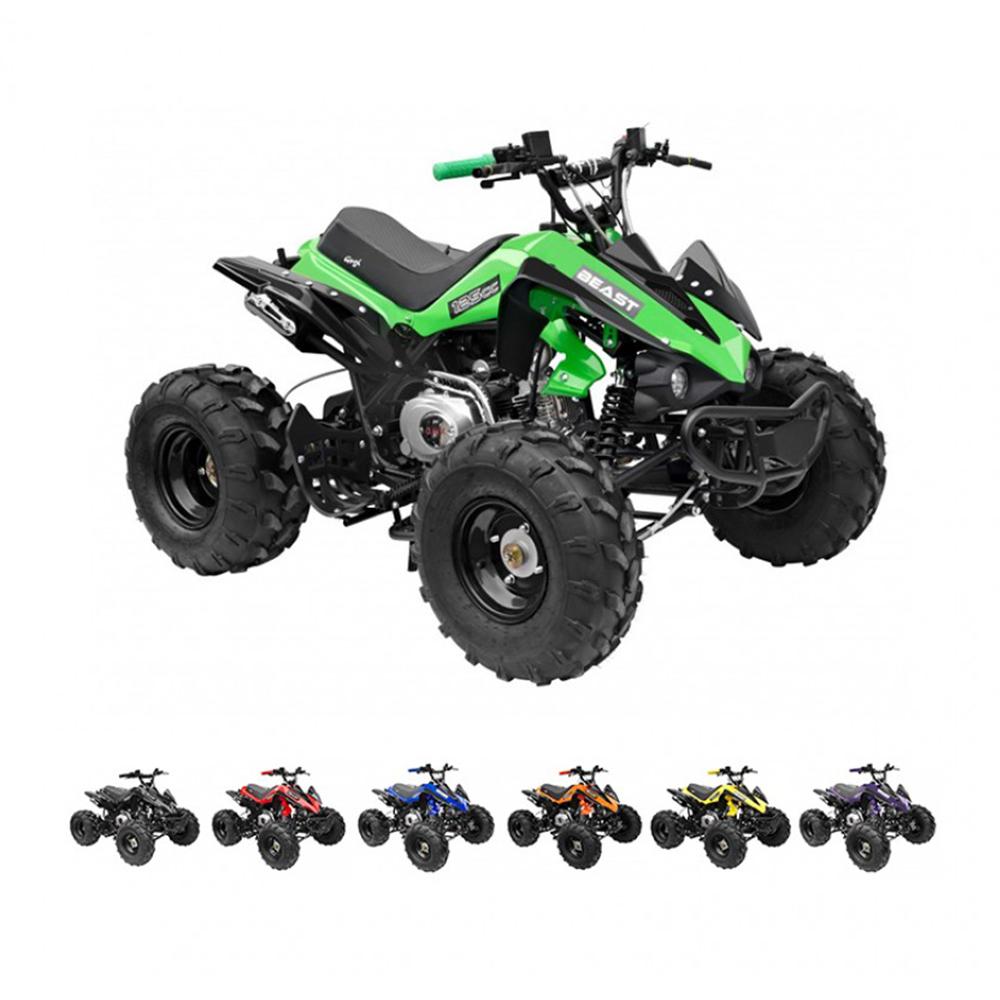

GMX The Beast 125cc Petrol-Powered 4-Stroke Sports Quad Bike - Black

125cc 4-Stroke Kids Sports Quad Bike With Electric Start And Twin Exhaust

Among the 125cc 4 strokes quad bike, GMX The Beast 125cc Petrol-Powered 4-Stroke Sports Quad Bike is one of the top-selling products in the market. The 4 stroke engine offers a very good performance for experienced riders who want more power and speed while riding. It is also provided with a fierce-looking fairing kit and twin exhaust for best performance as well as decreased sound. Riding at high speeds with this bike is very comfortable because of its wide and long wheelbase. Lasts very long because of the sturdy frame. The quad bike has hydraulic brakes on both the front and the rear, offering a quick halt when required.

Features and Benefits

• The motor can be easily cut off with a single flick, because of the physical kill switch.
• Located just behind the seat is the dead man switch that will cut off the motor when the rider comes off the bike thus making it very safe to ride.
• The handlebar is provided with a screw that will easily limit the speed for easy and controlled riding.
• Very easy to learn and very safe to ride.
• Heavy Duty Tyres With Wide Wheel Base



Specifications

Maximum Speed	70km/hr (depending on terrain surface)
Seat Height	710mm
Bore x Stroke	54mm x 55.5mm
Compression Ratio	9.1:1
Front Tyre	Heavy Duty Tyres 19*7-8 / 18*9.5-8 ( 8 inches)
Rear Tyre	Heavy Duty Tyres 19*7-8 / 18*9.5-8 ( 8 inches)
Tyre Pressure	65±5 Kpa
Wheelbase	940mm
Handlebar	High Bend Mini-Bar
Handlebar Grips	Soft High Grip Rubber
Magneto Type	Electronic Ignition System
Ground Clearance	85mm
Swingarm	Steel
Fuel Capacity	3.0L
Triple Clamps	Steel
Throttle Control	Thumb Throttle
Engine Oil Grade	Non-Synthetic 15W/40-SE - 4 Stroke Engine Oil
Optimal Engine Oil Level	800mL
Intake / Exhaust	Twin exhaust
Charger	Not included

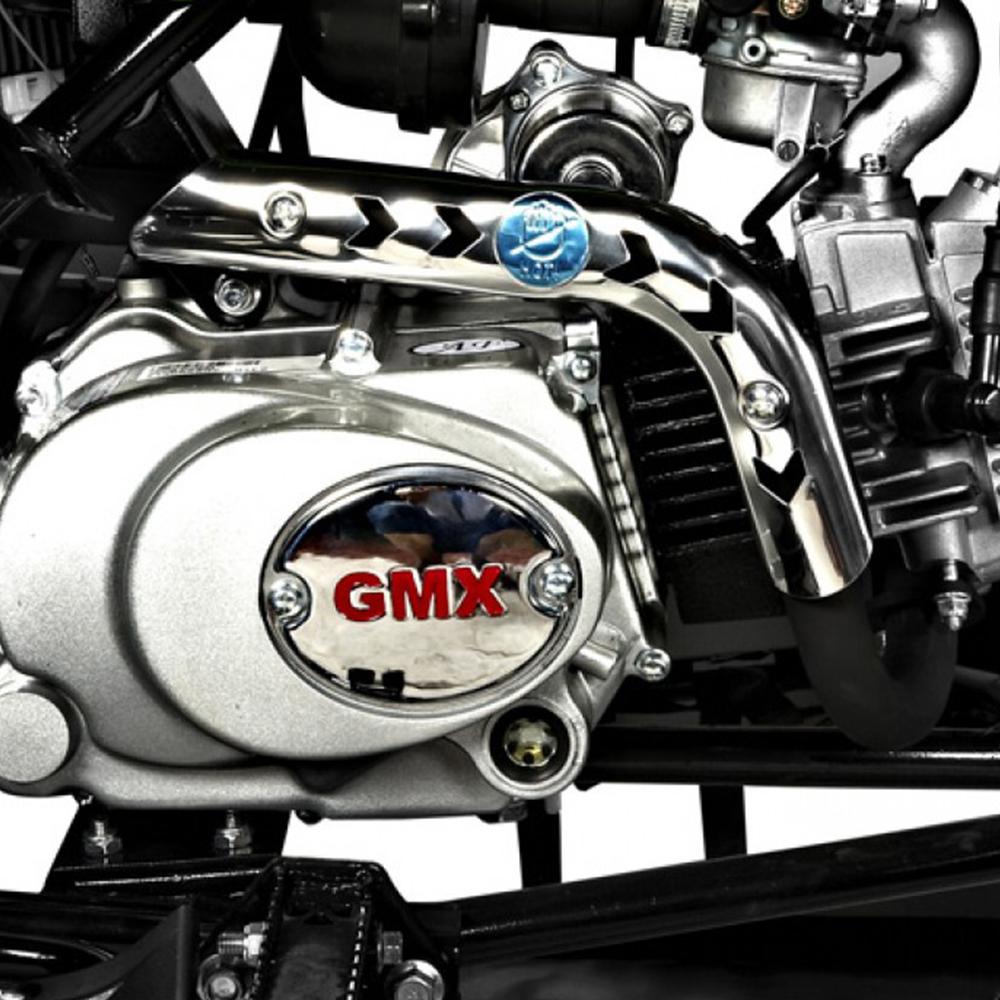

Engine Model	125cc Lifan 154FMI/ GMX series 1 Engine
Engine Type	4 Stroke - Single Cylinder. Air Cooled
Starting Mode	Electric Start
Ignition Type	CDI
Chain	428#84
Clutch Type	Heavy Duty Wet Multi-Plate
Cylinder ratio	106.7ML
Transmission	Semi-automatic with Reverse(R-0-1-2-3)
Shock Absorber	Spring Shock Absorber
Fuel	Regular Unleaded (92 or higher)
Fuel Delivery System	PZ 22 Carburetor
Drive	GMX 428#84Chain
Front Brake	Front Hydraulic Disc Brakes
Rear Brake	Rear Hydraulic Disc Brakes
Gearing	14 Tooth Front / 37 Tooth Rear
Idle Speed	≤800 ppm
Maximum Output	KW / HP: 8HP
Maximum Power	5.4Kw/8500 (r/min)
Maximum Torque	7.5N.m/ 6500 (r/min)
Rated Loading Capacity	120kgs
Rider Capacity	1 Person
Product Size	1450 x 980x 1000 mm



Shipping Information

All items ship from within Australia and take approximately 2-10 business days to arrive depending on your location. Read more...

Further Information

• This item is covered by the Kids Car Sales Guarantee. See full details here.
• Minor scratches and minor blemishes may be visible.
• Minor assembly is required.
• For safety purposes, it is recommended that you have this bike assembled by a skilled bike mechanic.
• For warranty claims, you may need to provide proof of assembly by a skilled mechanic. If not, a report from a small engine mechanic advising the issues should be presented to process your warranty claims
• Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs.
• Defective parts may need to be sent back to us for inspection.
• Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping.
• For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such.
• This item is intended for off-road use only.
• Manufacturer Warranty Information

Quad Bike Safety

WARNING: Risk of rollover

Every year quad bikes are a major cause of death and serious injury in rural workplaces with many incidents associated with rollovers. The risk of a rollover increases if the quad bike is crossing slopes, travelling at high speed, towing an attachment, travelling over rocky or uneven ground or carrying a heavy or unstable load.

General Safety Tips:

• Choose the right vehicle for the right task.
• The riders must be trained and physically able to control the vehicle
• Always Wear a Helmet
• Never Carry a Passenger
• Take Time to Learn and Practice
• Be Alert for off-road hazards
• Ride within your limits
• Don’t’ Drink and Ride

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images. Props and anything other then the item as described are for demonstration purposes only and do not come with the item.
