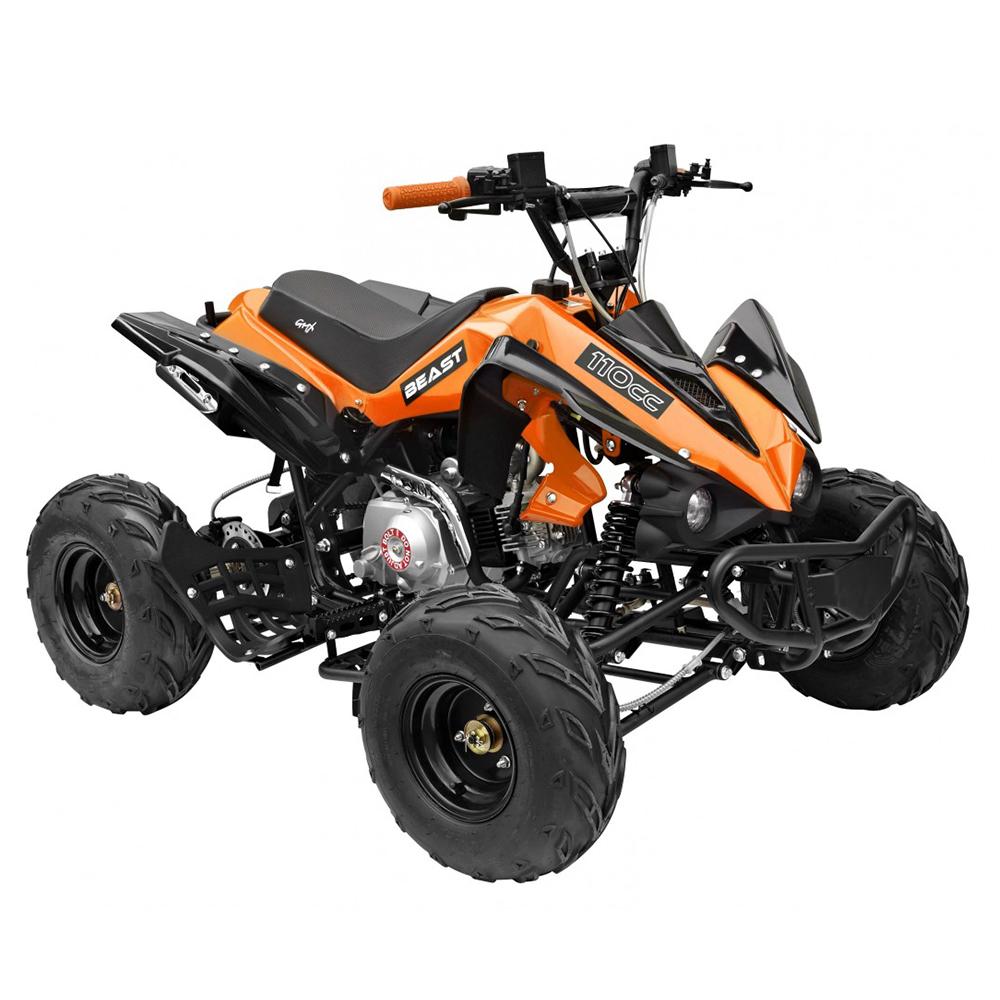

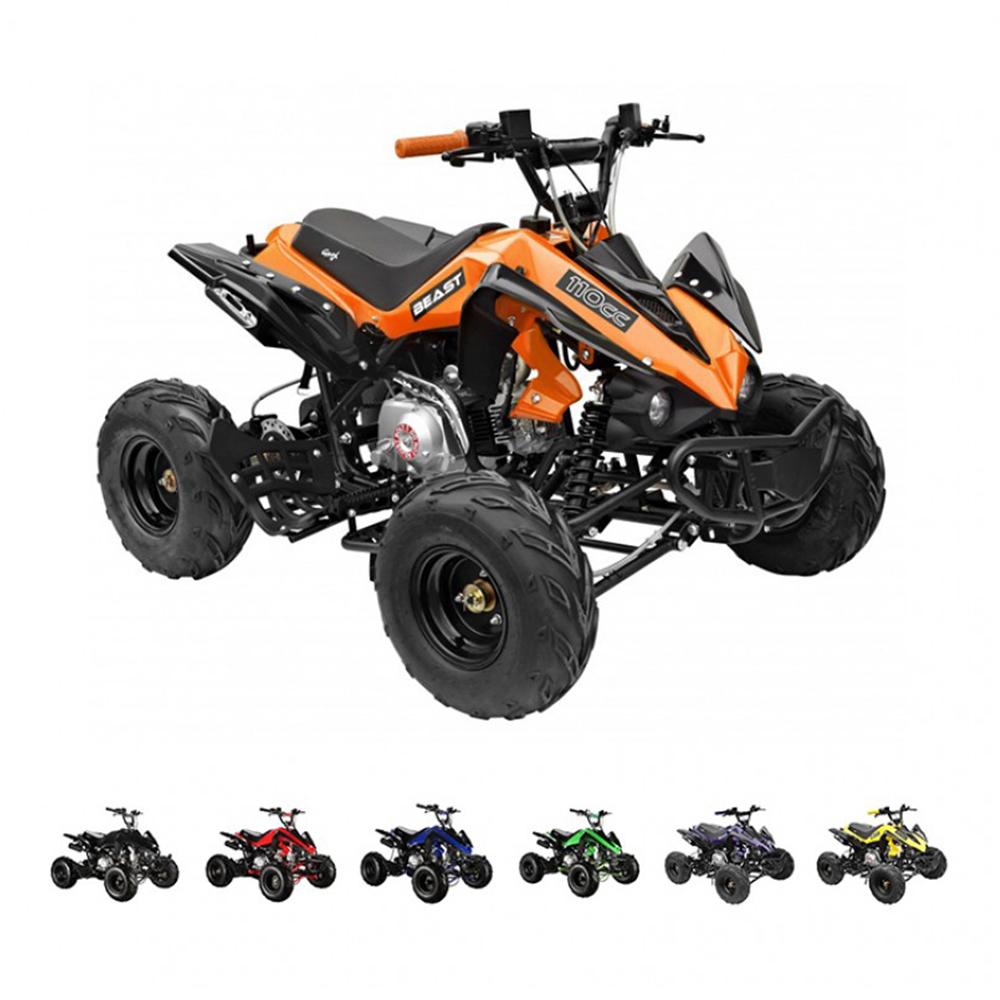

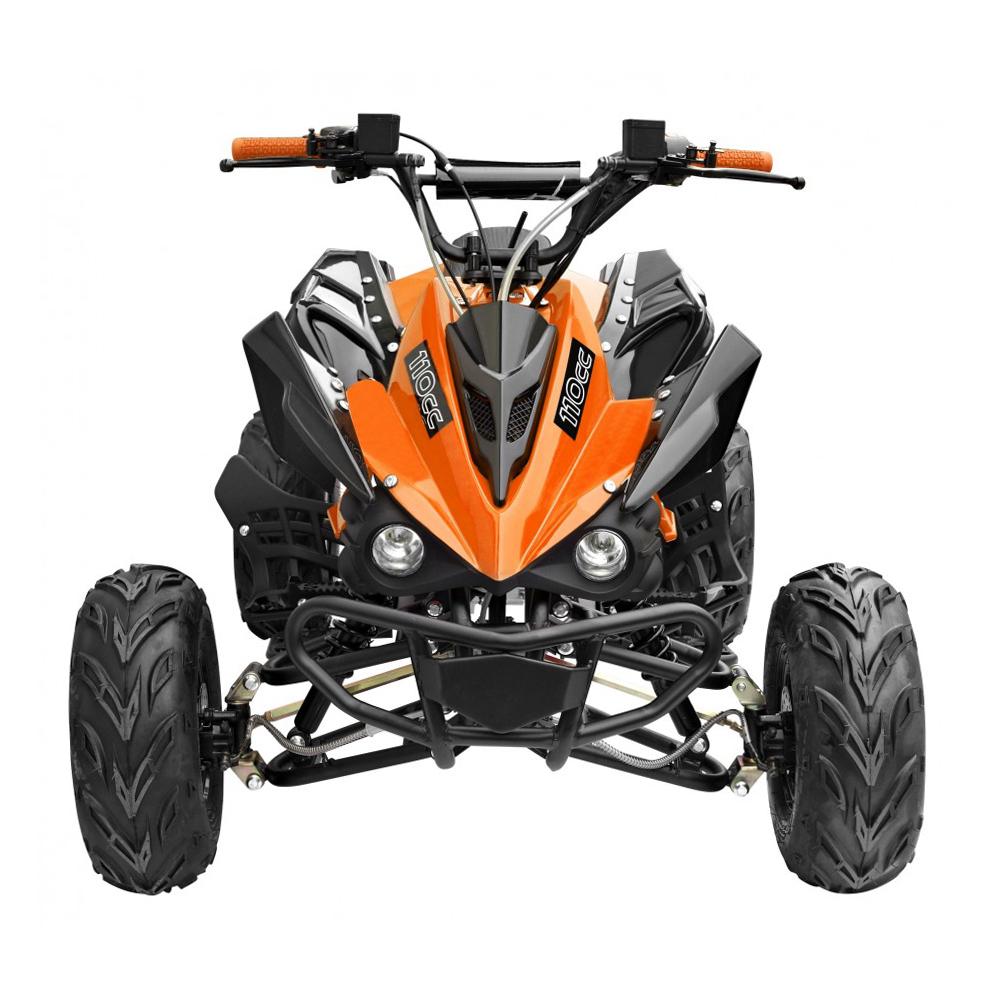

GMX Beast 110cc Petrol-Powered 4-Stroke Kids Sports Quad Bike - Orange

Petrol Powered 110cc Kids Quad Bike With Electric Start

Are you looking for a quad bike that will be suitable for beginner riders? Look no further than the GMX Beast 110cc Petrol-Powered 4-Stroke Kids Sports Quad Bike which is an entry-level model. It is provided with more power than the junior level bikes. It has a 4 stroke engine and is features top-notch functions like electric start and automatic transmission. Moreover, it has a wider frame that has a sports fairing kit and a very comfortable wheelbase that provide more stability even at very high speeds. Because of the highly sturdy frame, it is very strong as compared to other brands and remains functional for a longer period of time.



Features and Benefits

• Suitable for learners
• Highly safe as it is provided with many safety features like a physical killing switch and dead man switch
• The speed control features help in limiting speeds.
• Requires Minimal Assembly
• 100 Kg Load Capacity



Specifications

Maximum Speed	60km/hr (depending on terrain surface)
Seat Height	690mm
Bore x Stroke	52.4mm x 49.5mm
Compression Ratio	9.1:1
Front Tyre	Blaze Type 16*8-7 (7 inch)
Rear Tyre	Blaze Type 16*8-7 (7 inch)
Tyre Pressure	65±5 Kpa
Wheelbase	940mm
Handlebar	High Bend Mini-Bar
Handlebar Grips	Soft High Grip Rubber
Magneto Type	Electronic Ignition System
Ground Clearance	85mm
Swingarm	Steel
Fuel Capacity	3.0L
Triple Clamps	Steel
Throttle Control	Thumb Throttle
Engine Oil Grade	Non-Synthetic 15W/40-SE - 4 Stroke Engine Oil
Optimal Engine Oil Level	800mL

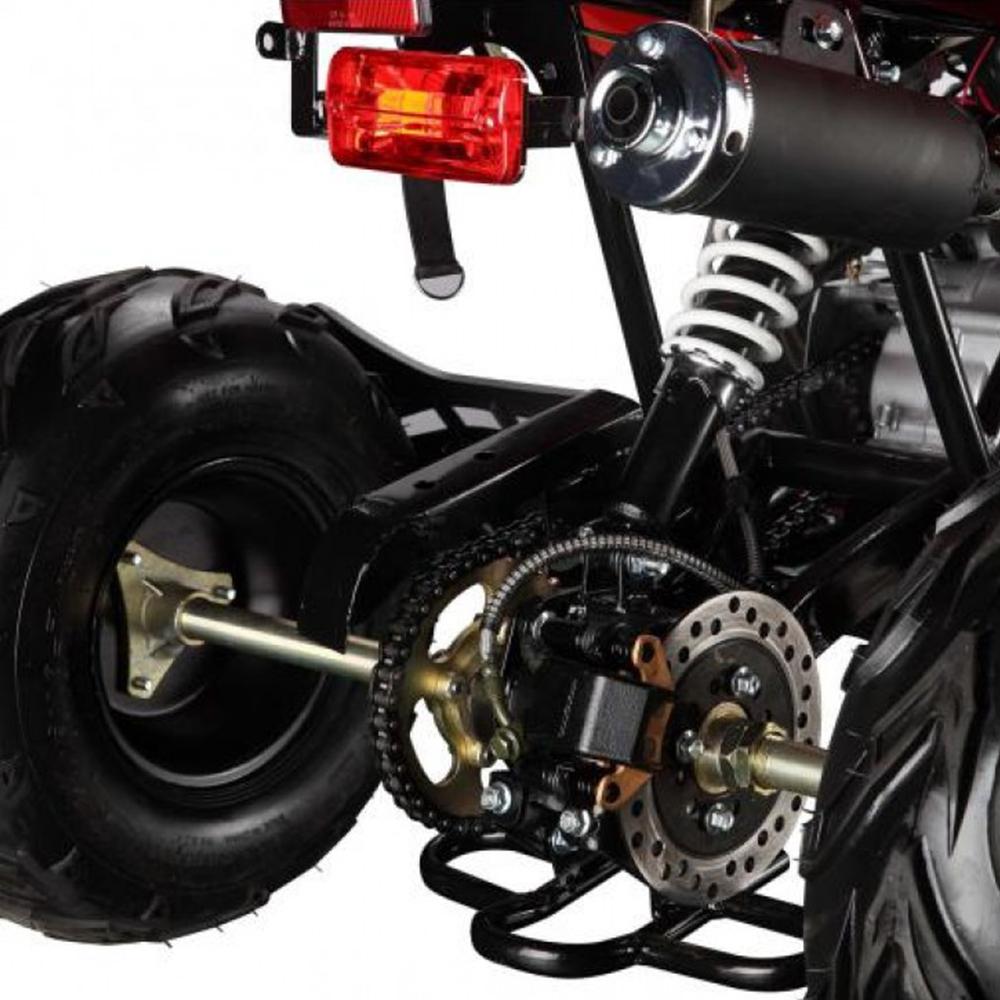

Intake / Exhaust	Race Pipe + Performance Steel Muffler
Charger	Not included
Engine Model	152FMH/ 110 cc GMX Series 1 Engine
Engine Type	4 Stroke - Single Cylinder. Air Cooled
Starting Mode	Electric Start
Ignition Type	CDI

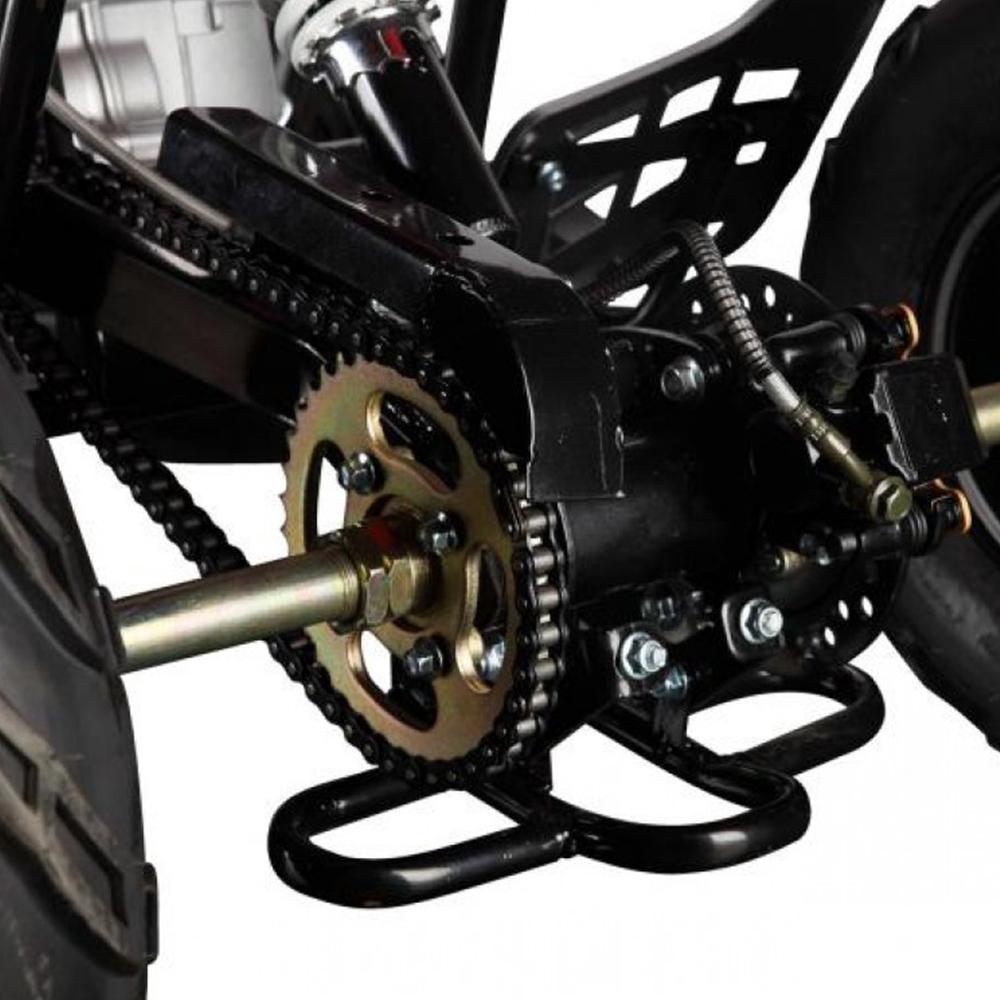

Chain	428#84
Clutch Type	Heavy Duty Wet Multi-Plate
Cylinder ratio	106.7ML
Transmission	Automatic with Reverse (D-N-R)
Fuel	Regular Unleaded (92 or higher)
Fuel Delivery System	PZ19 Carburetor
Drive	428#84Chain
Front Brake	Front Hydraulic Disc Brakes
Rear Brake	Rear Hydraulic Disc Brakes
Gearing	14 Tooth Front / 37 Tooth Rear
Idle Speed	≤800 ppm
Maximum Output	KW / HP: 8HP
Maximum Power	5.8Kw/8000 (r/min)
Maximum Torque	7.2N.m/ 6500 (r/min)
Rated Loading Capacity	100kgs
Rider Capacity	1 Person
Product Size	1450 x 980x 1000 mm
Product Weight	95kg
Gross Weight	115kg



Shipping Information

All items ship from within Australia and take approximately 2-10 business days to arrive depending on your location. Read more...

Further Information

• This item is covered by the Kids Car Sales Guarantee. See full details here.
• Minor scratches and minor blemishes may be visible.
• Minor assembly is required.
• For safety purposes, it is recommended that you have this bike assembled by a skilled bike mechanic.
• For warranty claims, you may need to provide proof of assembly by a skilled mechanic. If not, a report from a small engine mechanic advising the issues should be presented to process your warranty claims
• Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs.
• Defective parts may need to be sent back to us for inspection.
• Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping.
• For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such.
• This item is intended for off-road use only.
• Manufacturer Warranty Information

Quad Bike Safety

WARNING: Risk of rollover

Every year quad bikes are a major cause of death and serious injury in rural workplaces with many incidents associated with rollovers. The risk of a rollover increases if the quad bike is crossing slopes, travelling at high speed, towing an attachment, travelling over rocky or uneven ground or carrying a heavy or unstable load.

General Safety Tips:

• Choose the right vehicle for the right task.
• The riders must be trained and physically able to control the vehicle
• Always Wear a Helmet
• Never Carry a Passenger
• Take Time to Learn and Practice
• Be Alert for off-road hazards
• Ride within your limits
• Don’t’ Drink and Ride

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images. Props and anything other then the item as described are for demonstration purposes only and do not come with the item.
